Z1 Motorsports Nissan 300ZX (89-96) GT525+ Turbo Kit

Tarmac Sportz have partnered up with Z1 Motorsports to be the UKs approved distributor and fitter for all of their products.

Benefits of Buying Z1 products from Tarmac Sportz

• Assurance of authenticity.
• Access to manufacturer warranties.
• Reliable customer support.
• Peace of mind.
• Tried and tested products.

Z1's GT525 Plus Turbo Kit is an evolution of the popular Z1 GT525 Kit with enhancements made to improve response while supporting even greater levels of power.

525+ Turbo's are assembled with 100% new parts including the compressor housing, making core charges a thing of the past. Better flowing compressor housings with .80 AR replace the stock .42 AR housings, supporting higher levels of power. Inside, you'll find a lightweight billet compressor wheel, helping improve turbo spool-up for better response.

GT525+ features and enhancements:

More power than previous generation GT525
No core charges, No reused or recycled parts
No cracked wastegate ports
Easy bolt-on installation
Billet compressor wheels
Better flowing compressor housing AR .80 vs OEM .42
AR .63 turbine housing supports exhaust flow without sacrificing response
Turbine wheel 52.9 Inducer / 46.3mm exducer
Compressor wheel 47.2 mm Inducer / 60 mm exducer vs stock 39.8mm Inducer / 51.4 exducer
Gen 2 Billet aero 41 lb/min max flow rating
Same reliability as the previous generations of GT525
All OEM external oil and coolant lines connect like stock
Adjustable HD Wastegate Actuators set at 14 psi
Z1's GT525+ is the third generation in our line of 4-bolt turbos, and offer similar spool-up characteristics to the outgoing Gen2 525 with greater production of power and torque through the upper RPMs. These turbo's commonly produce ~450RWHP on pump fuel and can produce in excess of 630+RWHP on race fuel with proper tuning and other supporting modifications. These turbos spool up quickly and are capable of supporting more than 200 rwhp over the stock turbo's. This is partially due to our better flowing .80 A/R compressor housing, which means cooler charge temps at the same flow rate when compared to a stock housing turbo.

These use brand new compressor and turbine housings, designed specifically to house the larger compressor and turbine wheels. We have also employed a 360-degree thrust bearing assembly to further improve the longevity of these turbochargers. Turbine sections use a 4-bolt downpipe configuration and are direct bolt-on turbos.

Standard Kit includes:

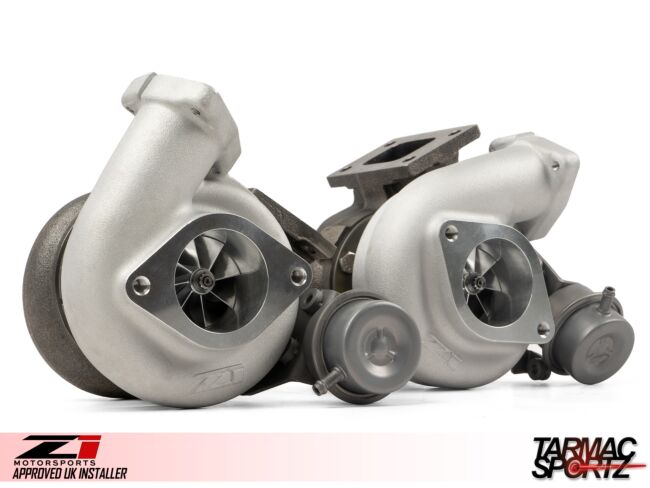

Pair of GT525+ Turbochargers
Oil Feed Lines
Oil Return Line Gaskets
Exhaust Manifold to Turbo Gaskets
Turbo to Downpipe Gasket
Compressor Inlet Gaskets
Compressor Outlet Gaskets
Oil Feed line Copper Crush Washers
Coolant Feed and Return Line Copper Crush Washers
Optional Upgraded Kit includes:

Connecting pipes for 2.5'' Exhaust
Connecting pipes for 3'' Exhaust
Fits:

1990-1996 Nissan 300ZX (Z32)
Installation Note: As is the case with any turbo larger than stock, slight trimming of the motor mounts and clocking of the turbo may be necessary if using aftermarket exhaust manifolds. This is dependent on the installer and the use of other aftermarket parts.
