Xtreme Clutch Toyota Supra (JZA70 (5 Speed) 1JZ-GTE Clutches

Xtreme Clutch Toyota Supra (JZA70 (5 Speed) 1JZ-GTE Clutches

Xtreme Clutch Toyota Supra (JZA80, 2JZGTE Engine) Clutches

Xtreme Clutch Toyota Supra (JZA80, 2JZGTE Engine) Clutches

Xtreme Clutch Toyota Glanza/Starlet (EP82-EP91, 4EFTE Engine) Clutches

Product Code: KTY22006

£294.80 £245.67
  • Usually Ships 2-3 Working Days (Subject to Stock)
  • 4 months at 0% interest with PayPal (orders £99+)

Stage 1

Recommended for: Street Performance & Towing

The stage 1 clutch kit uses an upgraded pressure plate with increased clamping pressure, combined with an organic friction disc. Stage 1 delivers substantial increases in performance and power holding capability whilst retaining near factory type driveability, and is designed primarily for high performance road going vehicles.



Stage 2

Recommended for: Street & Track

The stage two clutch uses an upgraded pressure plate combined with a ceramic friction disc in either sprung or cushioned configurations. The stage two clutch range is designed for road and track going vehicles that require a higher torque capacity and temperature tolerance, and faster engagement. Clutch engagement is more aggressive than stage 1, so it is not recommended for daily driven vehicles.



See below for power ratings, Clamping force is the Torque rating, the higher it is the harsher the clutch will feel, the twin plates for example would not be suitable in daily traffic.

Part   Number

Clutch   Type

Description

Clamping   Load- Nm

Clamping   Force- ft lb

FTY122C



Flywheel   - Chromoly Lightweight  5kg





KTY22006-1A

STAGE   1

Single   Plate - Organic

258

190.30

KTY22006-1B

STAGE   2

Single   Plate - Ceramic Paddle

390

287.66

KTY22006-1R

STAGE   2

Single   Plate- Ceramic Paddle - Race

628

463.21



Stage 1 Organic clutches usually ship next day, Stage 2 can be 3-5 days and the Race Series allow 2 weeks

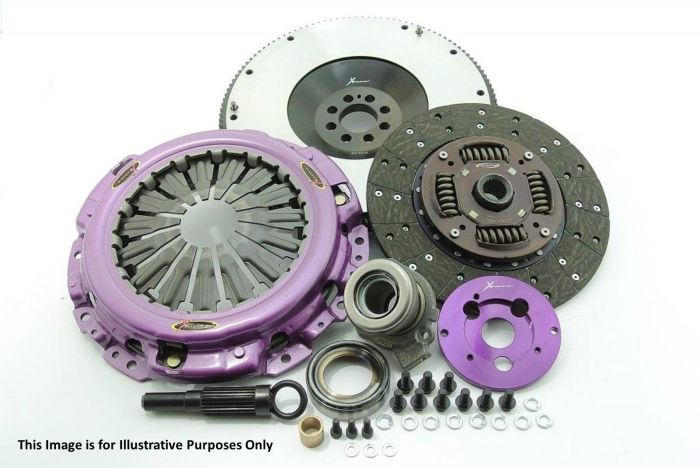

All kits come with everything required for installation

More Information
Brand Xtreme Clutch
