Xtreme Clutch Nissan Silvia (S15, SR20DET Engine) Clutches

Product Code: KNI24540-KNI20522

£774.18 £645.15
  • Usually Ships 2-3 Working Days
  • 4 months at 0% interest with PayPal (orders £99+)

Stage 1

Recommended for: Street Performance & Towing

The stage 1 clutch kit uses an upgraded pressure plate with increased clamping pressure, combined with an organic friction disc. Stage 1 delivers substantial increases in performance and power holding capability whilst retaining near factory type driveability, and is designed primarily for high performance road going vehicles.



Stage 2

Recommended for: Street & Track

The stage two clutch uses an upgraded pressure plate combined with a ceramic friction disc in either sprung or cushioned configurations. The stage two clutch range is designed for road and track going vehicles that require a higher torque capacity and temperature tolerance, and faster engagement. Clutch engagement is more aggressive than stage 1, so it is not recommended for daily driven vehicles.



Ceramic Race Series

Recommended for: Race vehicles

The ceramic race series is a race only clutch and flywheel package. It is available in single, twin, or triple configurations and also in 3 different diameters and up to 5 different flywheel designs depending on the vehicle specific requirements for torque capacity, weight, and moment of inertia (MOI). An extensive number of combinations gives the customer the ability to customise the ceramic race series for all levels of serious competition use.



See below for power ratings, Clamping force is the Torque rating, the higher it is the harsher the clutch will feel, the twin plates for example would not be suitable in daily traffic.

Part   Number

Clutch   Type

Description

Clamping   Load- Nm

Clamping   Force- ft lb

FNI042C



Flywheel   - Chromoly Lightweight 7.8kg





KNI24540-1A

STAGE   1

Single-   Organic Sprung- inc SMF Conversion And Flywheel Bolts

375

276.60

KNI24540-1B

STAGE   2

Single-   Ceramic Sprung- inc SMF Conversion And Flywheel Bolts

567

418.22

KNI24540-1R

STAGE   2

Single-   Ceramic Sprung- inc SMF Conversion And Flywheel Bolts

921

679.33

KNI18522-2E

CERAMIC   RACE

Twin   Plate- 184mm Ceramic Rigid

1210

892.50

KNI20522-2E

CERAMIC   RACE

Twin   Plate- 200mm Ceramic

1200

885.12



Stage 1 Organic clutches usually ship next day, Stage 2 can be 3-5 days and the Race Series allow 2 weeks

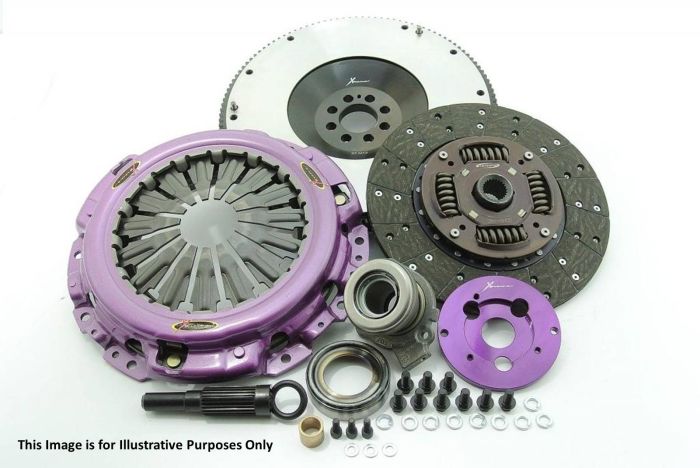

All kits come with everything required for installation
