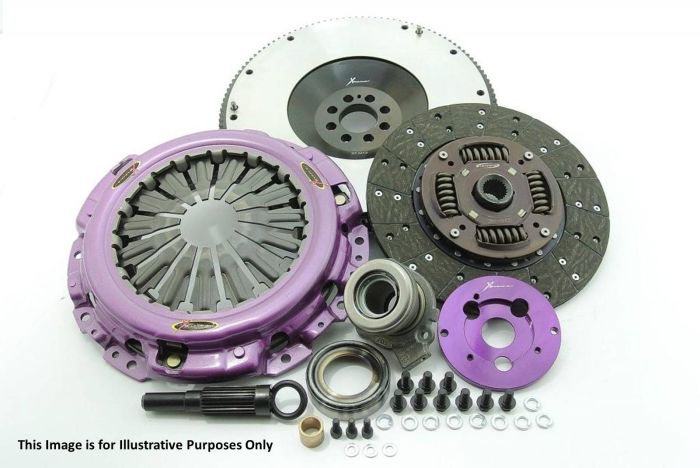

Product Code: KMC23540
Stage 1
Recommended for: Street Performance & Towing
The stage 1 clutch kit uses an upgraded pressure plate with increased clamping pressure, combined with an organic friction disc. Stage 1 delivers substantial increases in performance and power holding capability whilst retaining near factory type driveability, and is designed primarily for high performance road going vehicles.
Stage 2
Recommended for: Street & Track
The stage two clutch uses an upgraded pressure plate combined with a ceramic friction disc in either sprung or cushioned configurations. The stage two clutch range is designed for road and track going vehicles that require a higher torque capacity and temperature tolerance, and faster engagement. Clutch engagement is more aggressive than stage 1, so it is not recommended for daily driven vehicles.
See below for power ratings, Clamping force is the Torque rating, the higher it is the harsher the clutch will feel, the twin plates for example would not be suitable in daily traffic.
Part Number |
Clutch Type |
Description |
Clamping Load- Nm |
Clamping Force- ft lb |
KMC23540-1A |
STAGE 1 |
Single- Organic Sprung- inc SMF Conversion |
375 |
276.60 |
KMC23540-1B |
STAGE 2 |
Single- Ceramic Paddle Sprung- inc SMF Conversion |
567 |
418.22 |
Stage 1 Organic clutches usually ship next day, Stage 2 can be 3-5 days and the Race Series allow 2 weeks
All kits come with everything required for installation
Brand | Xtreme Clutch |
---|
