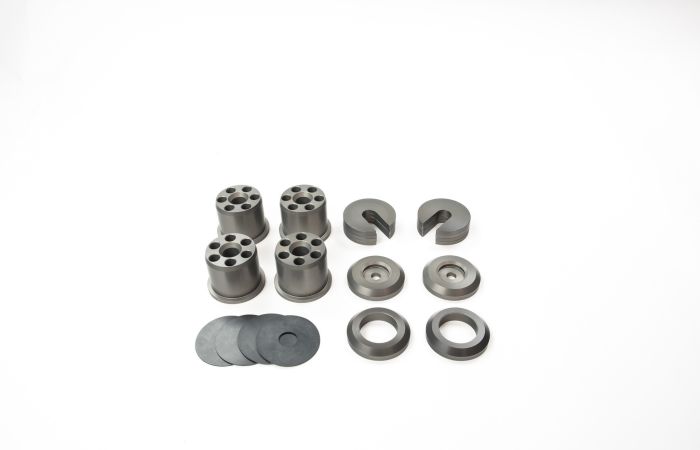

Voodoo13 Nissan 240SX (S13/S14) (89-98), Silvia (S15) (99-02) & Skyline (R32/R33/R34) (89-02) Subframe Bushings

Voodoo13 S13/S14 adjustable aluminum subframe bushings are designed to rid subframe to chassis play by eliminating the soft OEM rubber bushings. Solid subframe bushings are a sure way to reduce unwanted wheel hop as well as maintaining set suspension geometry.

Unlike the competition, Voodoo13 subframe bushings feature a unique deep angle chamfer in the center to lessen the difficulty of the subframe re-installation to the chassis. Instead of re-using the rear factory finishing caps like other companies, Voodoo 13 provide their own finishing caps to add to the aesthetics to an otherwise bland part of the car.

The front subframe mounts use a beveled ring to utilize the factory subframe braces. Slide-in shims allow quick subframe adjustment without removal, to either raise or lower the mounting points.

Lowering the subframe will decrease anti-squat while simultaneously increasing the roll-couple, while raising the subframe will correct roll center on a lowered car while increasing anti-squat.
