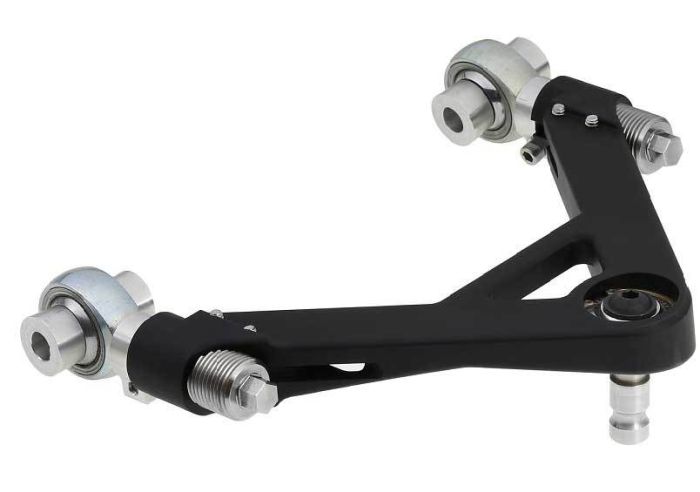

SPL Nissan GT-R R35 (08+) Pro Front Upper Camber/Caster Arms
Product Code: SPL FUA R35
£1,560.00
£1,300.00
- Usually Ships 1-2 Weeks
- 4 months at 0% interest with PayPal (orders £99+)
SPL front upper arms are designed with dual chassis mount adjusters providing camber and caster adjustment while remaining fully attached to the car. The revolutionary slotted arm design does away with the need for bulky and hard to reach jam nuts. Simply turn the hex cap double adjusters to set the arms to their desired length and then lock your alignment settings in place with an allen wrench. The time saved on the alignment rack can be spent in the drivers seat! The fully encapsulated spherical bearing that mounts to the upright provides superior strength and negates the worry of rod end bending commonly found in other designs. The wide adjustment range provides camber gain for racers wanting to maximize grip on the track and camber correction for lowered street vehicles needing optimal tire wear.
Using FEA (Finite Element Analysis) our CNC milled 6061 billet aluminum arms are designed to exceed factory strength and durability. Our exclusive hex cap double adjuster is comprised of electroless nickel plated 4130 chromoly along with 6061 aluminum clamps to reduce weight and prohibit corrosion while offering quick and easy adjustment. Ovesized USA made FK spherical bearings feature a teflon liner to provide quiet operation, lower friction, smoother articulation and eliminates bushing deflection under load. The liner is also self-lubricating and self-cleaning, offering robust reliability for street and track use.
Sold as a pair.
SPL Front Camber Arms Features:
- Lightweight aluminum, titaniuml, and chromoly construction
- Electroless nickel plated 4130 hybrid adjuster for quick adjustment
- Computer Aided Design with the aid of Finite Element Analysis
- Titanium socket head caps screws anodized blue
- Low friction 3/4" 3-piece Teflon lined FK rod ends and sphericals
- Black anodizing for a durable finish
- Made in the USA
Adjustment ranges:
On a 2010 GT-R test car that was lowerd 1 inch we were able to get to -5 degrees of camber at 5.9 degrees of caster. At -4 degrees of negative camber we could reach 8 degrees of caster and at -3.5 degrees of camber we could get to 7.7 degrees of caster. Camber correction was measured at 0 degrees of camber at 5.8 degrees of caster.
Application List:
2008+ Nissan GT-R R35
Installation Instuctions:
| Brand | SPL |
|---|
