Radium Engineering Toyota GT86 & GR86 / Subaru BRZ (12+) Fuel Pump Hanger (No Pumps Included)

Product Code: 20-1073/20-1074

£540.00 £450.00
  • Usually Ships 5 to 9 Working Days
  • 4 months at 0% interest with PayPal (orders £99+)

OVERVIEW
The new Radium Engineering fuel pump hanger has been redesigned for improved fuel collection and for ease of installation. It completely replaces the factory in-tank fuel pump module and allows 1 or 2 aftermarket fuel pumps to be used. The OEM level sender is retained in order to maintain factory functionality.

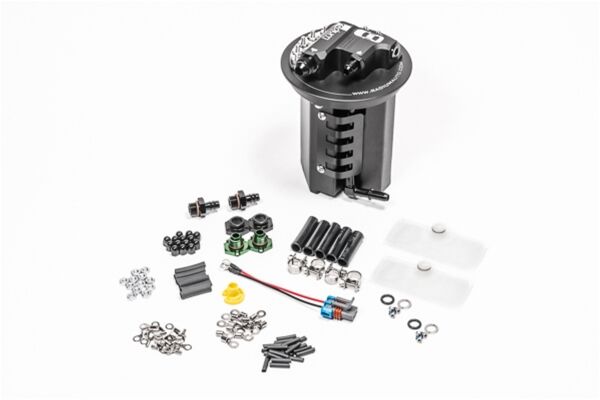

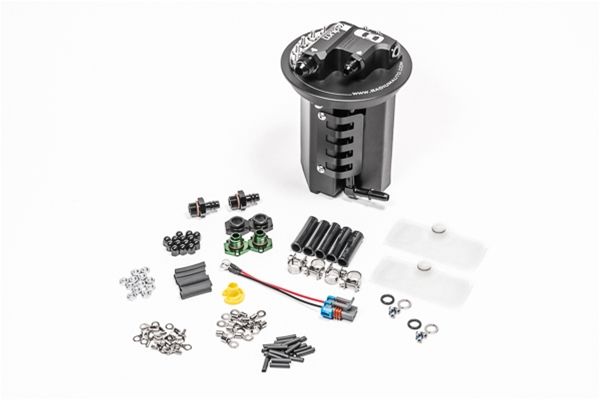

Part number 20-1073 (shown above) is specific to the 12-21 Toyota GT86, Subaru BRZ, and Scion FR-S fuel tanks.

Part number 20-1074 (shown above) is specific to the 2022+ Subaru BRZ and Toyota GR86 fuel tanks.

FEATURES
-8AN ORB to 8AN Male Pump-Out Fitting
-6AN ORB to 6AN Male Return Fitting
-Collector Box with 1-Way Fill Valve
-Venturi Jet Pump Siphon
-High Current Electrical Connections
-Anodized Fuel Level Sender Mount
-Twin Fuel Pump Compatibility
-Brushless Pump Compatibility
-Single Merged Fuel Pump Outlet
-Stainless Hardware and Clamps
-Alternative Fuel Compatibility
-New Anti-rotation Electrical Terminals

PREVENTING FUEL STARVATION
The kit includes a 1-piece anodized aluminium collector box that makes installation a breeze and keeps fuel trapped around the pump inlet(s). There is a 355 LPH 1-way fill valve incorporated in the bottom of the collector that allows fuel in, but not out.

FUEL PUMP COMPATIBILITY
*Ti Automotive Walbro F90000267
*Ti Automotive Walbro F90000274
*Ti Automotive Walbro F90000285
**Deatschwerks DW440 (brushless)
**Deatschwerks DW810 (brushless)
**Fuelab 49614 (brushless)
**Protec 11928 (brushless)

There will be enough components included to use 1 or 2 fuel pumps. Depending on the setup, some parts will simply not be used.
*Sock filters are provided in these kits for these fuel pumps.
**Sock filters are included from the fuel pump manufacturer.
