Mishimoto Subaru WRX/STI (01-07) Front-Mount Intercooler Kit

• Fits the 2001–2007 Subaru WRX/STI
• Intercooler design optimized for maximum flow, and smooth cast end tanks allow the best possible airflow in and out of the intercooler
• Optimal core design for maximum cooling efficiency with minimal pressure drop
• Flow rated to approximately 600 whp/30 psi of turbo boost (See Tech Specs below)
• Includes all necessary hardware, brackets, and accessories
• Also fits right-hand drive models
• Available in Sleek Silver or Stealth Black
• Works with stock bypass valve or aftermarket blow-off valve
• Optional Subaru WRX/STI Performance Air Intake works perfectly with intercooler kit and provides a rich and aggressive intake tone
• Mishimoto Lifetime Warranty

 Mishimoto Automotive, the world leader in performance cooling products, is proud to introduce you to the front-mount intercooler kit for the 2001–2007 Subaru WRX/ST...

COOLER INLET / OUTLET
2.75" I.D. / 3.00" O.D.

COOLER WEIGHT
25.5 lbs

COOLER TANK WALL THICKNESS
3.5mm

COOLER CONSTRUCTION
Bar-and-plate with cast end tanks

ALSO FITS
02–07 Subaru WRX
04–07 Subaru STI
05–06 Saab 9-2x Aero

ENGINE CODES
EJ205
EJ255
EJ257

CHASSIS CODES
GD
GG

TURBO TO HOT-SIDE HOSE SPECS (FOR STOCK TURBO)
– 1.875" I.D. / 2.20" O.D. – On turbo outlet
– 5mm hose thickness
– Withstands up to 400°F (204°C) temps
– Fits on turbos with 1.97" (50mm) maximum compressor outlet size

TURBO TO HOT-SIDE HOSE SPECS (FOR AFTERMARKET TURBO)
–2.00" I.D. / 2.40" O.D.–On turbo outlet
– 5mm hose thickness
– Withstands up to 400°F (204°C) temps
– Fits on turbos with 2.25" (57mm) maximum compressor outlet size

INTERCOOLER PIPE TO THROTTLE-BODY COUPLER SPECS
– 3.25" Length
– 2.75" I.D.
– 3.00" O.D.
– 4mm thick

BPV HOSE SPECS
– Application-specific bend for this kit
– 1.25" I.D.
– 1.50" O.D.
– 4mm thick

PCV HOSE SPECS
– 17.5" length
– 0.45" I.D.
– 0.75" O.D.
– 4mm thick

ALSO INCLUDED WITH OPTIONAL AIR INTAKE KIT
(1) Oiled Filter
(1) Aluminium Intake Pipe
(1) 2.75" Straight Coupler
(1) 3" Worm-Gear Clamp
(1) Black High-Temp Zip Ties

OPTIONAL AIR INTAKE SPECS
Pipe Diameter: 2.75"
Pipe Material: Aluminium
Oiled Filter: 38 g of oil on filter
Note: Filter re-oil is not included with the lifetime warranty.

COOLER OVERALL SIZE
44" x 9.00" x 5.5"

COOLER CORE SIZE
28" x 8.25" x 3.5"

CRASH BAR SPECS
– Steel construction with black powdercoat
– Application-specific mounting holes
– 6.5 lbs

HOT-SIDE INTERCOOLER PIPE SPECS
– Made from polished mandrel-bent aluminium
– 2.25" I.D.
– Includes upper and lower intercooler pipes

COLD-SIDE INTERCOOLER PIPE SPECS
– Made from polished mandrel-bent aluminium
– 2.75" I.D.
– Includes upper and lower intercooler pipes

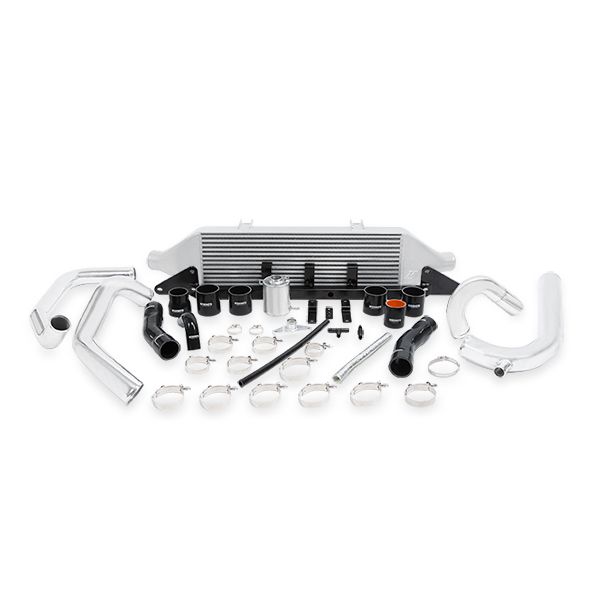

PURCHASE INCLUDES
(1) Bar-and-Plate Intercooler
(1) Steel Crash Bar w/ Mounting Hardware
(2) Hot-Side Intercooler Pipes
(2) Cold-Side Intercooler Pipes
(1) BPV Flange Adapter
(1) Resistor Block Relocation Bracket w/ Mounting Hardware
(2) Lower Intercooler Brackets w/ Mounting Hardware
(1) Aluminium Overflow Can w/ Mounting Hardware
(1) Turbo to Hot Pipe Coupler (for stock turbo)
(1) Turbo to Hot Pipe Coupler (for aftermarket turbo)
(1) 2.25" Straight Coupler
(2) 2.75" Straight Couplers
(1) 2.75" x 3.25" Long Straight Coupler
(1) 2.00"-2.75" Transition Coupler
(1) BPV Recirculation Hose
(1) PCV hose
(1) 2.00" T-bolt Clamp
(4) 2.5" T-bolt Clamps
(7) 3" T-bolt Clamps
(1) 1.5" Worm-Gear Clamp
(1) Bypass Valve Gasket
(1) Black Nylon Hose Fitting, 3/4" I.D.
(1) Black Nylon Tee Hose Fitting, 3/4" I.D.
(1) 12" of Thermal Wrap

NOTE
Mishimoto recommends that this intercooler kit, with or without the optional air intake, is not used with the stock ECU programming. It is highly recommended that the customer is able to retune the vehicleÍs ECU after installing the intercooler kit. Power gains will vary depending on the size of the turbo, exhaust system, fuel system, and type of ECU tune that is applied to the vehicle.

This kit is rated for approximately 600 whp during normal operating conditions. Maximum horsepower potential will be near 700 whp. Exceeding these horsepower or pressure limits could require a custom-size front-mount intercooler.

This FMIC kit is not compatible with OEM fog lights.

Fits the 2001–2007 Subaru WRX/STI
