Link Toyota Altezza (3SGE, 3SGTE Beams Engine) Plug-In ECU - TALTX

Easy to install. Affordable. Reliable.
G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.

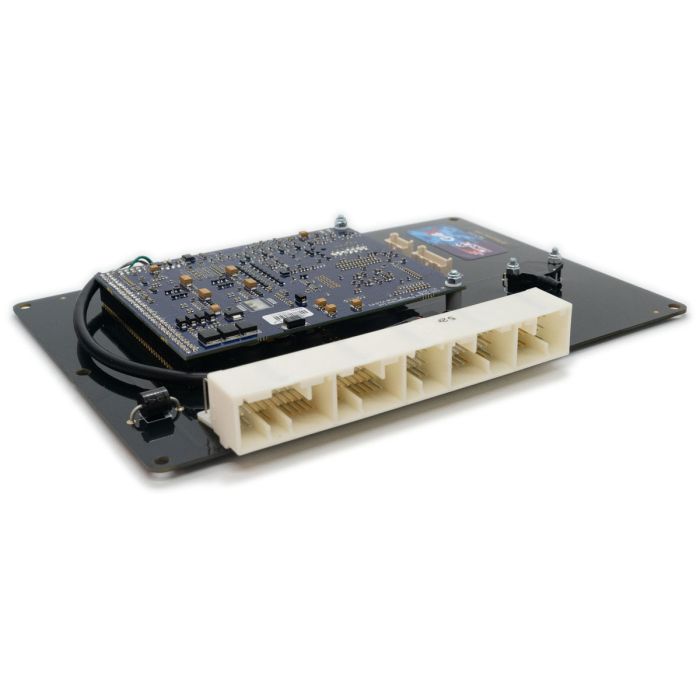

This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

Designed for the 3SGE Beams engine.

• Please check your connector matches the header in the listed photo before purchasing.
• This ECU works for manual transmissions only.
• ECU includes an onboard 4 bar or 7 bar MAP sensor.
• Most factory features are supported.
• Check the features tab for I/O expansion options

Suitable applications:

1998-2001 Toyota Altezza (XE10)

Lexus IS200 (GXE10)

G4X PlugIn Key Features (where applicable):
Up to 6D fuel and ignition mapping
Precision closed loop cam control (four cam, independent control)
Sequential fuel delivery
Digital triggering, all OEM patterns
OEM idle hardware supported
5D boost control with three switchable tables
Motorsport features - antilag, launch, flat shift
Continuous barometric correction (on board)
CAN port
QuickTune - automated fuel tuning
Individual cylinder correction
USB tuning cable included
Stats recording into on-board memory
Gear compensations for spark, boost and fuel
Real time selectable dual fuel, ignition and boost maps
Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
Boost control referenced to gear, speed or throttle position
512 mega bytes data logging memory
Staged injection
Knock with "windowing"

The following expansion connector inputs/outputs are provided:
Gnd                Sensor Ground Only
+5V Out        Low Current +5V Supply
DI 10                Digital Input for switching functions.
DI 9                Digital Input for switching functions.
An Volt 9        Analog 0-5V input
An Volt 8        Analog 0-5V input
An Temp 4        Temperature sensor input
Aux 8                Auxiliary output (2.0 amps maximum when driving to GND. 0.5 amps maximum when driving high.)
