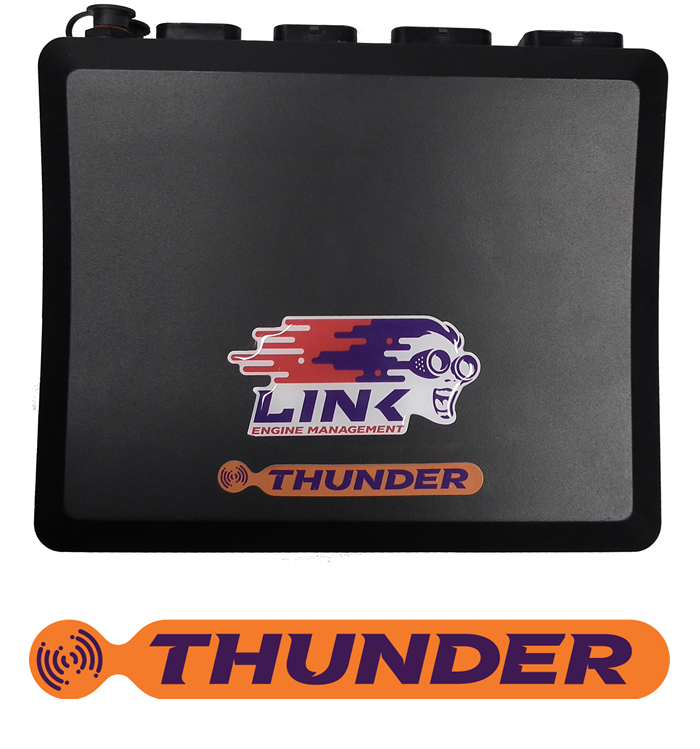

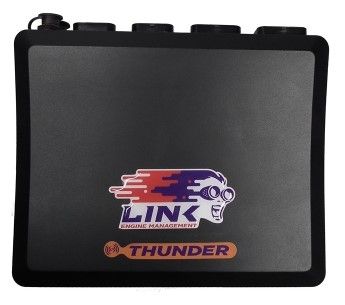

G4+ Thunder ECU

The Link G4+ Thunder ECU, with more of everything is the latest Engine Control Unit added to our extensive range.

Using the same pinout for the A & B connectors giving seamless upgrading from our other ECUs, the G4+ Thunder has 2 additional connectors (C & D) for increased capacity. This is the ECU for your high end applications requiring maximum performance, flexibility and tuning control, with the same sleek profile of our other “black” G4+ ECUs.

Some of the Thunder’s Features

One

Full motorsport features

• All Fury features
• Peak & Hold
  • CAN
  • 100 channels of user variable logging

Two

• K-type Onboard Thermocouple Inputs
• High accuracy for high temperature situations e.g. exhaust gas temperature sensing
• Digital Wideband Onboard (competitors are all analogue)
• E-throttle Controllers – for engines that have two electronic throttle bodies
• Knock Control Inputs – monitor each bank on a V engine

Sixteen

• Digital Inputs
• – Six can be differential reluctor (speed sensor) – ABS wheel speed sensors
• Analogue Inputs
• – Temperature- Pressure- Position

Twenty

• Auxiliary Outputs
  • Lights, solenoids, gauges, switches, relays etc

All Link ECUs (Engine Control Units) are 100% New Zealand designed and developed. We also offer a limited lifetime warranty so if your ECU breaks in the normal course of its designed use then we’ll repair or replace, no questions asked.

For more information, Click Here: http://dealers.linkecu.com/Products/wirein-ecu
