APR Performance Audi R8 (06+) GTC-500 74" Carbon Fiber Adjustable Wing

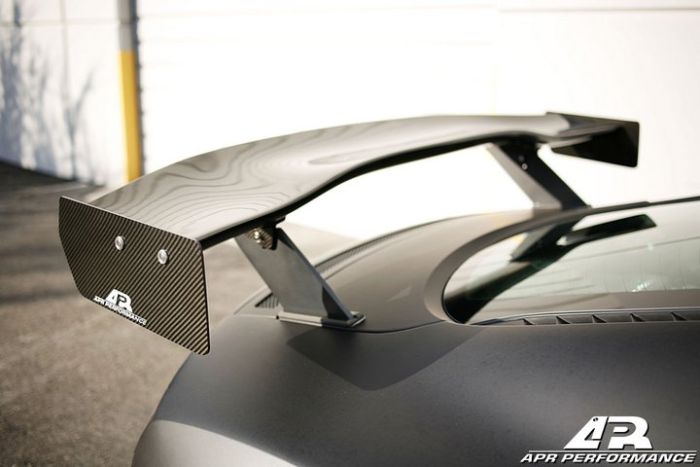

Mounting bases sit at edges of trunk lid.

The World's Widest Aftermarket Adjustable GT Wing

Spanning 70 inches, the GTC-500 Carbon Fiber Adjustable Wing is the largest wing available in APR's catalog. With its optimized 3D airfoil shape, the GTC-500 is perfect for high speed touring applications and supplies an ample amount of downforce without causing excess drag.

All GTC Series wings feature an aerodynamic 3D designed airfoil shape to obtain the optimal balance of downforce. This design allows for a reduction in drag, yet maintains an ideal level of downforce. Computational Fluid Dynamics (CFD) analysis was performed on this wing to support validation of its aerodynamic design.

Each GTC Series airfoil is composed of lightweight and durable carbon fiber reinforced polymer (CFRP) or fiber reinforced polymer (FRP) composite materials. CFRP models contain pre-pregnated woven carbon fiber sheets for superior strength and low weight. FRP models contain woven pre-pregnated glass fiber sheets for high strength at reasonable weight. All CFRP and FRP airfoils are made using pre-pregnated composite manufacturing processes (i.e. high-temperature autoclave and vacuum bagging) in high-quality aluminum molds.

Supporting the airfoils are 10mm "aircraft grade" 6061 billet aluminum pedestals that come in a flat black powder coat finish.

Center section to outer section angle difference: 10 degrees

Gurney Flaps

Gurney flaps are now available for all of APR's GTC-series (200/300/500) wings. These are super lightweight, made with carbon fiber using the pre-pregnated carbon process, and conform perfectly to the contours of the GTC-series 3D airfoils. They are easily attached using the included double-sided tape.

The Gurney flap (a.k.a. wickerbill) is an aerodynamic device that was originally pioneered and developed in the 1970s by a racing driver named Dan Gurney. Unbeknownst to his competition, this device was used to increase downforce while minimizing increase in drag. He found that not only did this device increase the lift/drag (L/D) ratios, it also increased the stalling angles (so he could operate the airfoils at greater pitch angles). It took a few years for everyone else to catch on to its purpose, and now, the Gurney flap (or similar device) can be seen in race cars and even airplanes all over the world.
